China Fruit Jam Tomato Paste Honey Sachet Filling Machine Multi Function wholesale

Fruit Jam Tomato Paste Honey Sachet Filling Machine Multi Function

Ask Latest Price

Video Channel

Brand Name :PLC

Model Number :PL-350/550/850/1000

Certification :CE

Place of Origin :China

MOQ :1

Price :6000-8000usd/set

Payment Terms :T/T

Supply Ability :100 units in a month

Delivery Time :25 working days

Packaging Details :Wooden case

packaging material :Plastic, Paper, Wood

application :Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL

packaging type :Cartons, Stand-up Pouch, Film, Foil, Belt, Pouch, case

driven type :Pneumatic

Voltage :380V/50Hz 220V/50-60Hz

After-sales Service Provided :Video technical support, Field installation, commissioning

dimension :1200*1100*2350 mm

Speed :280-400 bags /min

Appearance :Stainless steel

Power :3.3KW

Contact Now

Add to Cart

View Product Description

filling machine sauce packing sealing machine automatic bag packing machine small sachet packaging machine

Parameter

model	PL-220GSYB
measuring range	1-30g
bag size	(back seal)L20-145mm,W20-100mm;(side seal)L20-145mm,W30-100mm
dose range	magnetic pump,rotor pump,piston pump
voltage	220V,50-60Hz,2KW
control system	PLC control
speed	80-120bag/min
bag type	back seal/side seal
dimension	L900W700H1720mm
weight	300kg
package material	bopp/pe/pet,any heat sealing laminated film roll

Equipment performance

1.Filling,metering,bag,making,sealing,cutting,hot pressing,batch number,etc.can be automatically completed during the packging process,

and the postioning of the photoelectric tacking mark does not need to be adjusted

2.Pure electric using three stepping motors,lighter in action, more streamlined in structure easy to maintain and easy to maintain

3.Intelligent control system,Chinese and English LCD display.Only need to set the parameters to precisely control the opperation of the

system

4.The heat sealer controls the uniform heating of the bag side,and the temperature ofthe upper and lower sides can be adjusted separately

5.Replapcing the cutter can realize one-line,pattern-shaped cutting ,one-line joint cutting,stable and reliablebag cutting without bag

jamming easy operation, and can be equipped with awheel type coding machineto arrange batch number,shelf life,ect

Features

1.Pure electric using three stepper motors lighter in action.more streamlined in structure,easy to maintain and easy to maintain

2.The speed can be adjusted by pressing the up anddownkeys on the PLC screen display without adjusting any parameters

3.Quiet high precision,easy to clean

4The chassis is customized with 304 stainless steel,non-outsourcing stainless steel plate

5.The equipment is highly compatible,and different specifications can be realized by changing the mold

Solid state use cooling base

7.Servo motor feding,patented rotor pump,strong versatility.

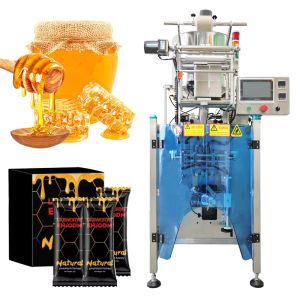

Fruit Jam Tomato Paste Honey Sachet Filling Machine Multi Function

Key Features

It's designed for filling and packing various liquid products, from daily chemicals to food items such as honey (as shown in the product display with honey - like liquid packaging). Suitable for industries dealing with cleaning agents, beverages, hair care products, and more.

Packaging Material: Plastic, Paper, Wood
Packaging Type: Cartons, Stand-up Pouch, Film, Foil, Belt, Pouch, Case
Application: Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel
Driven Type: Pneumatic
Filling Material: Liquid
Warranty: 1 Year
Voltage: 380V/50Hz or 220V/50-60Hz
Function: Filling, Wrapping, Sealing
Automatic Grade: Fully Automatic
Key Selling Points: Long Service Life
Core Components: Motor, PLC, Gear

Technical Specifications

Model	PL-880Y
Measuring Range	20ML
Bag Length	50-160 mm
Bag Width	20-100 mm
Film Width	50-260mm/50-240mm
Bag Type	Back seal, side seal bag, round corner
Speed	280-400 bags/min
Power	3.3KW
Appearance	Stainless steel
Weight	1500 KG
Dimensions (LWH)	120011002350 mm
Certification	CE

Product Parameters

Model	PL-350	PL-550	PL-850	PL-1000
Film Range	≤350mm	≤550mm	≤850mm	≤1000mm
Bag Size	Bag width: 16-80mm, Bag length max 170mm (Contact seller for exact model based on your package size requirements)
Filling Volume	1-50ml, or customized according to buyer's requirements
Application	For filling and packing any liquid product
Package Material	Any laminated plastic material
Packing Speed	30-50 cuts/lane/min (depends on real product testing)
Voltage	380V 50HZ
Power	4.5kw	5.2kw	6kw	7kw
Air Source	7L/min
Final Bag Shape	3 side seal, 4 side seal, round corner stick, irregular shape packing etc.
